#include <dual_csr.h>

Inheritance diagram for gs::DualCsr< RecordView >:

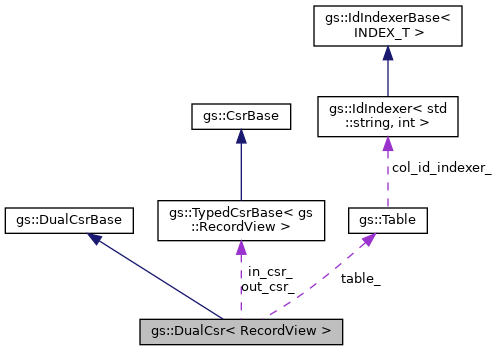

Collaboration diagram for gs::DualCsr< RecordView >:

[legend]

Public Member Functions
	DualCsr (EdgeStrategy oe_strategy, EdgeStrategy ie_strategy, const std::vector< std::string > &col_name, const std::vector< PropertyType > &property_types, const std::vector< StorageStrategy > &storage_strategies)

	~DualCsr ()

void	InitTable (const std::string &edata_name, const std::string &work_dir)

void	BatchInit (const std::string &oe_name, const std::string &ie_name, const std::string &edata_name, const std::string &work_dir, const std::vector< int > &oe_degree, const std::vector< int > &ie_degree) override

void	BatchInitInMemory (const std::string &edata_name, const std::string &work_dir, const std::vector< int > &oe_degree, const std::vector< int > &ie_degree) override

void	Open (const std::string &oe_name, const std::string &ie_name, const std::string &edata_name, const std::string &snapshot_dir, const std::string &work_dir) override

void	OpenInMemory (const std::string &oe_name, const std::string &ie_name, const std::string &edata_name, const std::string &snapshot_dir, size_t src_vertex_cap, size_t dst_vertex_cap) override

void	OpenWithHugepages (const std::string &oe_name, const std::string &ie_name, const std::string &edata_name, const std::string &snapshot_dir, size_t src_vertex_cap, size_t dst_vertex_cap) override

void	Dump (const std::string &oe_name, const std::string &ie_name, const std::string &edata_name, const std::string &new_snapshot_dir) override

CsrBase *	GetInCsr () override

CsrBase *	GetOutCsr () override

const CsrBase *	GetInCsr () const override

const CsrBase *	GetOutCsr () const override

void	BatchPutEdge (vid_t src, vid_t dst, size_t row_id)

Table &	GetTable ()

const Table &	GetTable () const

void	IngestEdge (vid_t src, vid_t dst, grape::OutArchive &oarc, timestamp_t ts, Allocator &alloc) override

void	SortByEdgeData (timestamp_t ts) override

void	UpdateEdge (vid_t src, vid_t dst, const Any &data, timestamp_t ts, Allocator &alloc) override

void	Close () override

Public Member Functions inherited from gs::DualCsrBase
	DualCsrBase ()=default

virtual	~DualCsrBase ()=default

void	Resize (vid_t src_vertex_num, vid_t dst_vertex_num)

void	Warmup (int thread_num)

size_t	EdgeNum () const

Private Attributes
const std::vector< std::string > &	col_name_

const std::vector< PropertyType > &	property_types_

const std::vector< StorageStrategy > &	storage_strategies_

TypedMutableCsrBase< RecordView > *	in_csr_

TypedMutableCsrBase< RecordView > *	out_csr_

std::atomic< size_t >	table_idx_

Table	table_

Constructor & Destructor Documentation

◆ DualCsr()

gs::DualCsr< RecordView >::DualCsr	(	EdgeStrategy	oe_strategy,
		EdgeStrategy	ie_strategy,
		const std::vector< std::string > &	col_name,
		const std::vector< PropertyType > &	property_types,
		const std::vector< StorageStrategy > &	storage_strategies
	)

inline

◆ ~DualCsr()

gs::DualCsr< RecordView >::~DualCsr ( )

inline

Member Function Documentation

◆ BatchInit()

void gs::DualCsr< RecordView >::BatchInit	(	const std::string &	oe_name,
		const std::string &	ie_name,
		const std::string &	edata_name,
		const std::string &	work_dir,
		const std::vector< int > &	oe_degree,
		const std::vector< int > &	ie_degree
	)

inlineoverridevirtual

Implements gs::DualCsrBase.

◆ BatchInitInMemory()

void gs::DualCsr< RecordView >::BatchInitInMemory	(	const std::string &	edata_name,
		const std::string &	work_dir,
		const std::vector< int > &	oe_degree,
		const std::vector< int > &	ie_degree
	)

inlineoverridevirtual

Implements gs::DualCsrBase.

◆ BatchPutEdge()

void gs::DualCsr< RecordView >::BatchPutEdge	(	vid_t	src,
		vid_t	dst,
		size_t	row_id
	)

inline

◆ Close()

void gs::DualCsr< RecordView >::Close ( )

inlineoverridevirtual

Implements gs::DualCsrBase.

◆ Dump()

void gs::DualCsr< RecordView >::Dump	(	const std::string &	oe_name,
		const std::string &	ie_name,
		const std::string &	edata_name,
		const std::string &	new_snapshot_dir
	)

inlineoverridevirtual

Implements gs::DualCsrBase.

◆ GetInCsr() [1/2]

const CsrBase* gs::DualCsr< RecordView >::GetInCsr ( ) const

inlineoverridevirtual

Implements gs::DualCsrBase.

◆ GetInCsr() [2/2]

CsrBase* gs::DualCsr< RecordView >::GetInCsr ( )

inlineoverridevirtual

Implements gs::DualCsrBase.

◆ GetOutCsr() [1/2]

const CsrBase* gs::DualCsr< RecordView >::GetOutCsr ( ) const

inlineoverridevirtual

Implements gs::DualCsrBase.

◆ GetOutCsr() [2/2]

CsrBase* gs::DualCsr< RecordView >::GetOutCsr ( )

inlineoverridevirtual

Implements gs::DualCsrBase.

◆ GetTable() [1/2]

Table& gs::DualCsr< RecordView >::GetTable ( )

inline

◆ GetTable() [2/2]

const Table& gs::DualCsr< RecordView >::GetTable ( ) const

inline

◆ IngestEdge()

void gs::DualCsr< RecordView >::IngestEdge	(	vid_t	src,
		vid_t	dst,
		grape::OutArchive &	oarc,
		timestamp_t	ts,
		Allocator &	alloc
	)

inlineoverridevirtual

Implements gs::DualCsrBase.

◆ InitTable()

void gs::DualCsr< RecordView >::InitTable	(	const std::string &	edata_name,
		const std::string &	work_dir
	)

inline

◆ Open()

void gs::DualCsr< RecordView >::Open	(	const std::string &	oe_name,
		const std::string &	ie_name,
		const std::string &	edata_name,
		const std::string &	snapshot_dir,
		const std::string &	work_dir
	)

inlineoverridevirtual

Implements gs::DualCsrBase.

◆ OpenInMemory()

void gs::DualCsr< RecordView >::OpenInMemory	(	const std::string &	oe_name,
		const std::string &	ie_name,
		const std::string &	edata_name,
		const std::string &	snapshot_dir,
		size_t	src_vertex_cap,
		size_t	dst_vertex_cap
	)

inlineoverridevirtual

Implements gs::DualCsrBase.

◆ OpenWithHugepages()

void gs::DualCsr< RecordView >::OpenWithHugepages	(	const std::string &	oe_name,
		const std::string &	ie_name,
		const std::string &	edata_name,
		const std::string &	snapshot_dir,
		size_t	src_vertex_cap,
		size_t	dst_vertex_cap
	)

inlineoverridevirtual

Implements gs::DualCsrBase.

◆ SortByEdgeData()

void gs::DualCsr< RecordView >::SortByEdgeData ( timestamp_t ts )

inlineoverridevirtual

Implements gs::DualCsrBase.

◆ UpdateEdge()

void gs::DualCsr< RecordView >::UpdateEdge	(	vid_t	src,
		vid_t	dst,
		const Any &	data,
		timestamp_t	ts,
		Allocator &	alloc
	)

inlineoverridevirtual

Implements gs::DualCsrBase.

Member Data Documentation

◆ col_name_

const std::vector<std::string>& gs::DualCsr< RecordView >::col_name_

private

◆ in_csr_

TypedMutableCsrBase<RecordView>* gs::DualCsr< RecordView >::in_csr_

private

◆ out_csr_

TypedMutableCsrBase<RecordView>* gs::DualCsr< RecordView >::out_csr_

private

◆ property_types_

const std::vector<PropertyType>& gs::DualCsr< RecordView >::property_types_

private

◆ storage_strategies_

const std::vector<StorageStrategy>& gs::DualCsr< RecordView >::storage_strategies_

private

◆ table_

Table gs::DualCsr< RecordView >::table_

private

◆ table_idx_

std::atomic<size_t> gs::DualCsr< RecordView >::table_idx_

private

The documentation for this class was generated from the following file:

/home/runner/work/GraphScope/GraphScope/flex/storages/rt_mutable_graph/dual_csr.h
