gs::GraphDBSession Class Reference

#include <graph_db_session.h>

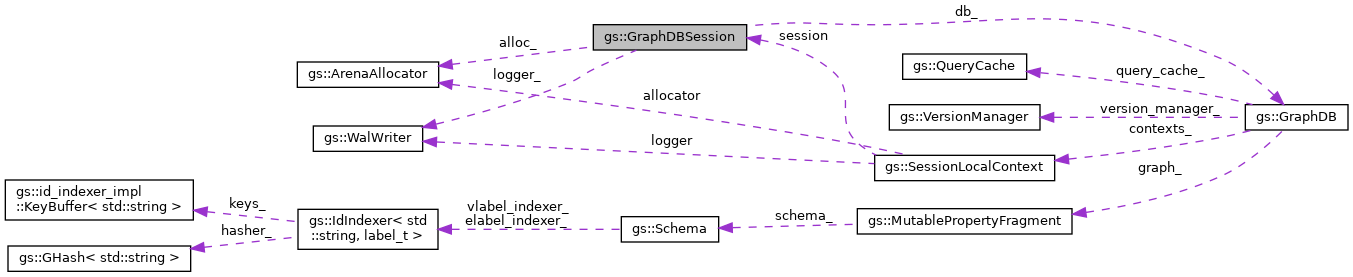

Collaboration diagram for gs::GraphDBSession:

Public Types
enum	InputFormat : uint8_t {   InputFormat::kCppEncoder = 0, InputFormat::kCypherJson = 1, InputFormat::kCypherProtoAdhoc = 2, InputFormat::kCypherProtoProcedure = 3,   InputFormat::kCypherString = 4 }

Public Member Functions
	GraphDBSession (GraphDB &db, Allocator &alloc, WalWriter &logger, const std::string &work_dir, int thread_id)
	~GraphDBSession ()
ReadTransaction	GetReadTransaction () const
InsertTransaction	GetInsertTransaction ()
SingleVertexInsertTransaction	GetSingleVertexInsertTransaction ()
SingleEdgeInsertTransaction	GetSingleEdgeInsertTransaction ()
UpdateTransaction	GetUpdateTransaction ()
CompactTransaction	GetCompactTransaction ()
bool	BatchUpdate (UpdateBatch &batch)
const MutablePropertyFragment &	graph () const
MutablePropertyFragment &	graph ()
const GraphDB &	db () const
const Schema &	schema () const
std::shared_ptr< ColumnBase >	get_vertex_property_column (uint8_t label, const std::string &col_name) const
std::shared_ptr< RefColumnBase >	get_vertex_id_column (uint8_t label) const
Result< std::vector< char > >	Eval (const std::string &input)
void	GetAppInfo (Encoder &result)
int	SessionId () const
bool	Compact ()
double	eval_duration () const
const AppMetric &	GetAppMetric (int idx) const
int64_t	query_num () const
AppBase *	GetApp (int idx)
AppBase *	GetApp (const std::string &name)

Static Public Attributes
static constexpr int32_t	MAX_RETRY = 3
static constexpr int32_t	MAX_PLUGIN_NUM = 256
static constexpr const char *	kCppEncoderStr = "\x00"
static constexpr const char *	kCypherJsonStr = "\x01"
static constexpr const char *	kCypherProtoAdhocStr = "\x02"
static constexpr const char *	kCypherProtoProcedureStr = "\x03"

Private Member Functions
Result< std::pair< uint8_t, std::string_view > >	parse_query_type_from_cypher_json (const std::string_view &input)
Result< std::pair< uint8_t, std::string_view > >	parse_query_type_from_cypher_internal (const std::string_view &input)
Result< std::pair< uint8_t, std::string_view > >	parse_query_type (const std::string &input)
	Parse the input format of the query. There are four formats: 0. CppEncoder: This format will be used by interactive-sdk to submit c++ stored prcoedure queries. The second last byte is the query id. More...

Private Attributes
GraphDB &	db_
Allocator &	alloc_
WalWriter &	logger_
std::string	work_dir_
int	thread_id_
std::array< AppWrapper, MAX_PLUGIN_NUM >	app_wrappers_
std::array< AppBase *, MAX_PLUGIN_NUM >	apps_
std::array< AppMetric, MAX_PLUGIN_NUM >	app_metrics_
std::atomic< int64_t >	eval_duration_
std::atomic< int64_t >	query_num_

Member Enumeration Documentation

InputFormat

enum gs::GraphDBSession::InputFormat : uint8_t

strong

Enumerator
kCppEncoder
kCypherJson
kCypherProtoAdhoc
kCypherProtoProcedure
kCypherString

Constructor & Destructor Documentation

GraphDBSession()

gs::GraphDBSession::GraphDBSession ( GraphDB &  db, Allocator &  alloc, WalWriter &  logger, const std::string &  work_dir, int  thread_id  )

inline

~GraphDBSession()

gs::GraphDBSession::~GraphDBSession ( )

inline

Member Function Documentation

BatchUpdate()

bool gs::GraphDBSession::BatchUpdate

(

UpdateBatch &

batch

)

Compact()

bool gs::GraphDBSession::Compact

(

)

db()

const GraphDB & gs::GraphDBSession::db

(

)

const

Eval()

Result< std::vector< char > > gs::GraphDBSession::Eval

(

const std::string &

input

)

eval_duration()

double gs::GraphDBSession::eval_duration

(

)

const

get_vertex_id_column()

std::shared_ptr< RefColumnBase > gs::GraphDBSession::get_vertex_id_column

(

uint8_t

label

)

const

get_vertex_property_column()

std::shared_ptr< ColumnBase > gs::GraphDBSession::get_vertex_property_column	(	uint8_t	label,
		const std::string &	col_name
	)		const

GetApp() [1/2]

AppBase * gs::GraphDBSession::GetApp

(

const std::string &

name

)

GetApp() [2/2]

AppBase * gs::GraphDBSession::GetApp

(

int

idx

)

GetAppInfo()

void gs::GraphDBSession::GetAppInfo

(

Encoder &

result

)

GetAppMetric()

const AppMetric & gs::GraphDBSession::GetAppMetric

(

int

idx

)

const

GetCompactTransaction()

CompactTransaction gs::GraphDBSession::GetCompactTransaction

(

)

GetInsertTransaction()

InsertTransaction gs::GraphDBSession::GetInsertTransaction

(

)

GetReadTransaction()

ReadTransaction gs::GraphDBSession::GetReadTransaction

(

)

const

GetSingleEdgeInsertTransaction()

SingleEdgeInsertTransaction gs::GraphDBSession::GetSingleEdgeInsertTransaction

(

)

GetSingleVertexInsertTransaction()

SingleVertexInsertTransaction gs::GraphDBSession::GetSingleVertexInsertTransaction

(

)

GetUpdateTransaction()

UpdateTransaction gs::GraphDBSession::GetUpdateTransaction

(

)

graph() [1/2]

MutablePropertyFragment& gs::GraphDBSession::graph

(

)

graph() [2/2]

MutablePropertyFragment & gs::GraphDBSession::graph

(

)

const

parse_query_type()

Result<std::pair<uint8_t, std::string_view> > gs::GraphDBSession::parse_query_type ( const std::string &  input )

inlineprivate

Parse the input format of the query. There are four formats: 0. CppEncoder: This format will be used by interactive-sdk to submit c++ stored prcoedure queries. The second last byte is the query id.

1. CypherJson: This format will be sended by interactive-sdk, the input is a json string + '\x01' { "query_name": "example", "arguments": { "value": 1, "type": { "primitive_type": "DT_SIGNED_INT32" } } }
2. CypherInternalAdhoc: This format will be used by compiler to submit adhoc query, the input is a string + '\x02', the string is the path to the dynamic library.
3. CypherInternalProcedure: This format will be used by compiler to submit procedure query, the input is a proto-encoded string + '\x03', the string is the path to the dynamic library.

   Parameters

   input

   The input query.

   Returns

   The id of the query and a string_view which contains the real input of the query, discard the input format and query type.

parse_query_type_from_cypher_internal()

Result< std::pair< uint8_t, std::string_view > > gs::GraphDBSession::parse_query_type_from_cypher_internal ( const std::string_view &  input )

private

parse_query_type_from_cypher_json()

Result< std::pair< uint8_t, std::string_view > > gs::GraphDBSession::parse_query_type_from_cypher_json ( const std::string_view &  input )

private

query_num()

int64_t gs::GraphDBSession::query_num

(

)

const

schema()

const Schema & gs::GraphDBSession::schema

(

)

const

SessionId()

int gs::GraphDBSession::SessionId

(

)

const

Member Data Documentation

alloc_

Allocator& gs::GraphDBSession::alloc_

private

app_metrics_

std::array<AppMetric, MAX_PLUGIN_NUM> gs::GraphDBSession::app_metrics_

private

app_wrappers_

std::array<AppWrapper, MAX_PLUGIN_NUM> gs::GraphDBSession::app_wrappers_

private

apps_

std::array<AppBase*, MAX_PLUGIN_NUM> gs::GraphDBSession::apps_

private

db_

GraphDB& gs::GraphDBSession::db_

private

eval_duration_

std::atomic<int64_t> gs::GraphDBSession::eval_duration_

private

kCppEncoderStr

constexpr const char* gs::GraphDBSession::kCppEncoderStr = "\x00"

staticconstexpr

kCypherJsonStr

constexpr const char* gs::GraphDBSession::kCypherJsonStr = "\x01"

staticconstexpr

kCypherProtoAdhocStr

constexpr const char* gs::GraphDBSession::kCypherProtoAdhocStr = "\x02"

staticconstexpr

kCypherProtoProcedureStr

constexpr const char* gs::GraphDBSession::kCypherProtoProcedureStr = "\x03"

staticconstexpr

logger_

WalWriter& gs::GraphDBSession::logger_

private

MAX_PLUGIN_NUM

constexpr int32_t gs::GraphDBSession::MAX_PLUGIN_NUM = 256

staticconstexpr

MAX_RETRY

constexpr int32_t gs::GraphDBSession::MAX_RETRY = 3

staticconstexpr

query_num_

std::atomic<int64_t> gs::GraphDBSession::query_num_

private

thread_id_

int gs::GraphDBSession::thread_id_

private

work_dir_

std::string gs::GraphDBSession::work_dir_

private

---

The documentation for this class was generated from the following files:

• /home/runner/work/GraphScope/GraphScope/flex/engines/graph_db/database/graph_db_session.h
• /home/runner/work/GraphScope/GraphScope/flex/engines/graph_db/database/graph_db_session.cc
